Reverse Retaining Ring for External Shaft Grooves-M1408 AV

A shaft reverse retaining ring, is a kind of elastic element used for connecting and fixing parts, its function is to fix the reverse shaft and prevent it from slipping or falling off, when installed, its elastic deformation is in the opposite direction to the common shaft elastic retaining ring.

Material: conventional carbon steel and stainless steel (65Mn, C67S, 2Cr13, 304, 1.4122, etc.)

Surface treatment: all kinds of conventional standard treatment, such as phosphating, Dacromet, Jumet, zinc plating, zinc nickel plating, electrophoresis, and so on.

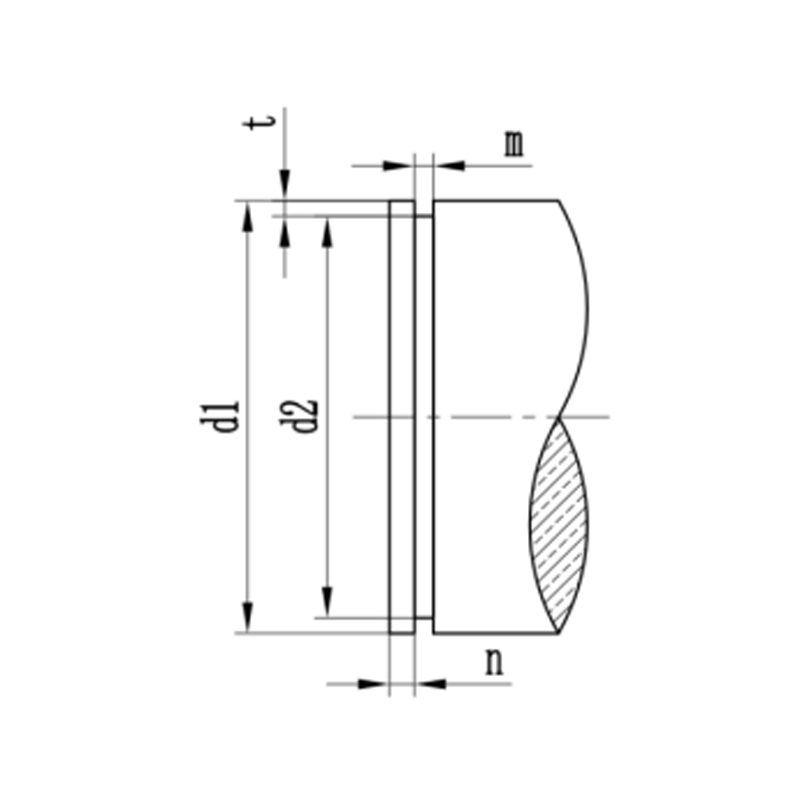

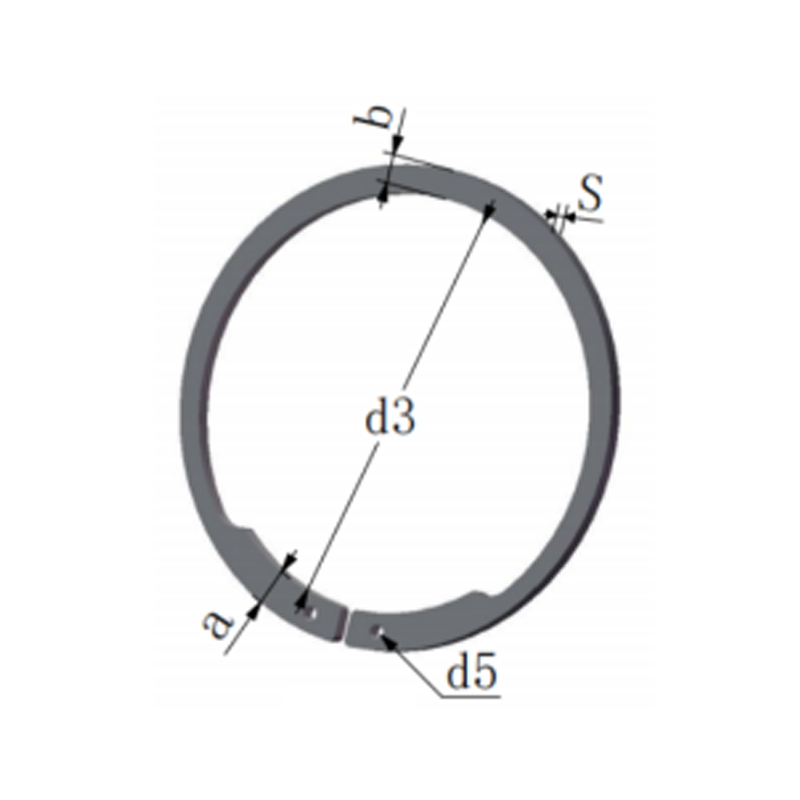

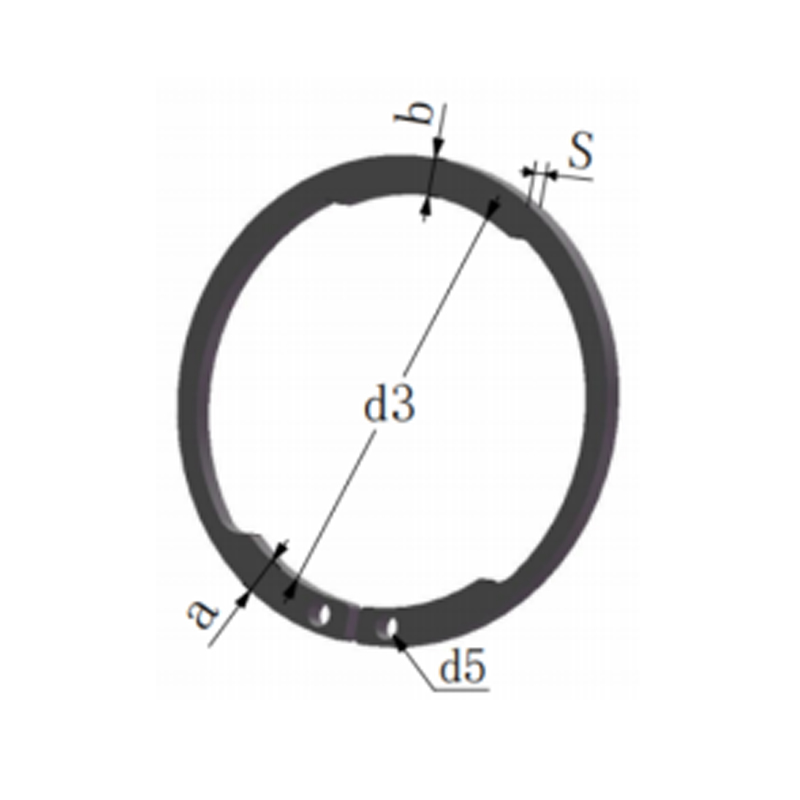

d1: specification/nominal size; S: thickness; d3: inner diameter; ≈b: shoulder width; d5: small hole; Wt: weight; FN: groove bearing capacity; FR: retaining ring bearing capacity (right angle); g: chamfer size; FRg: retaining ring bearing capacity (chamfer); n abl: limit speed;

Reverse Retaining Ring for External Shaft Grooves-M1408 AV

d1 S Tol d3 Tol b Tol d5 Min Wt(g) d2 Tol m Min t n FN(KN) FR(KN) g FRg(KN) K N·mm n ablx1000
10
0.6
–0.05
9.2
+0.10 –0.36
1.8
± 0.1
1
0.25
9.5
–0.11
0.7
0.25
0.7
0.62
1.4
1
1
5.7
84
12
1
–0.06
11
+0.10 –0.36
2.1
± 0.1
1.3
0.5
11.5
–0.11
1.1
0.25
0.7
0.7
4.5
1
2.4
21.6
79
13
1
–0.06
11.9
+0.10 –0.36
2.1
±0.1
1.3
0.56
12.4
–0.11
1.1
0.3
0.9
0.9
5.5
1
2.4
20.8
64
14
1
–0.06
12.9
+0.10 –0.36
2.1
±0.1
1.3
0.58
13.4
–0.11
1.1
0.3
0.9
0.97
6
1
2.4
19.2
56
15
1
–0.06
13.8
+0.10 –0.36
2.2
±0.1
1.3
0.66
14.3
–0.11
1.1
0.35
1
1.22
6.5
1
2.4
19.3
50
16
1
–0.06
14.7
+0.10 –0.36
2.3
±0.1
1.3
0.72
15.2
–0.11
1.1
0.4
1.2
1.48
7
1
2.5
18.7
45
17
1
–0.06
15.7
+0.10 –0.36
2.4
±0.1
1.3
0.81
16.2
–0.11
1.1
0.4
1.2
1.57
8.1
1
2.6
18.2
41
18
1.2
–0.06
16.5
+0.10 –0.36
2.6
±0.1
1.5
1.14
17
–0.11
1.3
0.5
1.5
2.07
14.8
1.5
3.2
32.6
39
20
1.2
–0.06
18.5
+0.13 –0.42
2.8
±0.1
1.5
1.43
19
–0.15
1.3
0.5
1.5
2.3
14.6
1.5
3.1
30.1
32
21
1.2
–0.06
19.35
+0.13 –0.42
2.8
±0.1
1.5
1.53
20
–0.15
1.3
0.5
1.5
2.42
14.4
1.5
3.1
29.9
29
22
1.2
–0.06
20.5
+0.13 –0.42
3
±0.1
1.5
1.63
21
–0.15
1.3
0.5
1.5
2.53
14.2
1.5
3.1
29.7
27
23
1.2
–0.06
21.5
+0.13 –0.42
3.1
±0.1
1.5
1.78
22
–0.15
1.3
0.5
1.5
2.66
14
1.5
3.1
29
25
24
1.2
–0.06
22.2
+0.21 –0.42
3.2
±0.1
1.5
1.9
22.9
–0.21
1.3
0.55
1.6
3.03
14
1.5
3.1
28.8
27
25
1.2
–0.06
23.2
+0.21 –0.42
3.4
±0.1
1.5
2.1
23.9
–0.21
1.3
0.55
1.6
3.18
14.1
1.5
3.2
28.8
25
26
1.2
–0.06
24.2
+0.21 –0.42
3.5
±0.1
1.5
2.18
24.9
–0.21
1.3
0.55
1.6
3.3
14.1
1.5
3.2
28.4
25
28
1.5
–0.06
25.9
+0.21 –0.42
3.8
±0.1
2
3.18
26.6
–0.21
1.6
0.7
2.1
4.5
28
1.5
6.4
56
22
30
1.5
–0.06
27.9
+0.21 –0.42
3.9
±0.1
2
3.58
28.6
–0.21
1.6
0.7
2.1
4.86
27.5
1.5
6.3
53.5
19
32
1.5
–0.06
29.6
+0.21 –0.42
4
±0.1
2
3.88
30.3
–0.25
1.6
0.85
2.5
6.25
27
2
4.7
52
17
34
1.5
–0.06
31.5
+0.25 –0.50
4
±0.1
2
3.6
32.3
–0.25
1.6
0.85
2.5
6.67
26.6
2
4.6
50.5
15
35
1.5
–0.06
32.2
+0.25 –0.50
4.2
±0.1
2
4.53
33
–0.25
1.6
1
2.5
8
26.6
2
4.6
50.1
16
38
1.75
–0.06
34.5
+0.25 –0.50
4.5
±0.1
2
5.5
35.8
–0.25
1.85
1.1
3.3
10.6
42
2
7.8
77
15
40
1.75
–0.06
36.5
+0.39 –0.90
4.7
±0.2
2
6.49
37.5
–0.25
1.85
1.25
3.8
12.6
42
2
7.8
77
15
42
1.75
–0.06
38.5
+0.39 –0.90
4.7
±0.2
2
6.51
39.5
–0.25
1.85
1.25
3.8
13.3
42
2
7.8
76
13
45
1.75
–0.06
41.5
+0.39 –0.90
4.7
±0.2
2
7.8
42.5
–0.25
1.85
1.25
3.8
14.3
41.5
2
7.8
75
11
47
1.75
–0.06
43.5
+0.39 –0.90
5
±0.2
2
8.09
44.5
–0.25
1.85
1.25
3.8
15
41
2
7.8
73.5
10
48
1.75
–0.06
44.5
+0.39 –0.90
5.2
±0.2
2
8.48
45.5
–0.25
1.85
1.25
3.8
15.8
41
2
7.8
73.5
10
50
2
–0.07
45.8
+0.39 –0.90
5.2
±0.2
2.5
9.84
47
–0.25
2.15
1.5
4.5
19.2
58
2
11.6
108
10
55
2
–0.07
50.8
+0.46 –1.10
5.8
±0.2
2.5
11.42
52
–0.30
2.15
1.5
4.5
21
58
2.5
9.3
104
9
58
2
–0.07
53.8
+0.46 –1.10
5.8
±0.2
2.5
13
55
–0.30
2.15
1.5
4.5
22.2
56
2.5
9.2
100
8
60
2
–0.07
55.8
+0.46 –1.10
5.8
±0.2
2.5
13.8
57
–0.30
2.15
1.5
4.5
23
55.5
2.5
9.1
99
7
65
2.5
–0.07
60.8
+0.46 –1.10
6
±0.3
2.5
20.75
62
–0.30
2.65
1.5
4.5
24.8
104
2.5
17.6
187
6
70
2.5
–0.07
65.5
+0.46 –1.10
6.5
±0.3
2.5
23.7
67
–0.30
2.65
1.5
4.5
27
103
2.5
17.6
185
6
72
2.5
–0.07
67.5
+0.46 –1.10
6.5
±0.3
2.5
24.7
69
–0.30
2.65
1.5
4.5
27.7
104
2.5
18
187
6
75
2.5
–0.07
70.5
+0.46 –1.10
6.5
±0.3
2.5
27.5
72
–0.30
2.65
1.5
4.5
29.2
100
2.5
17.7
182
5
80
2.5
–0.07
74.5
+0.46 –1.10
7
±0.3
2.5
28.9
76.5
–0.30
2.65
1.75
5.3
36.6
96
3
14.6
175
6
82
2.5
–0.07
76.5
+0.46 –1.10
7
±0.3
2.5
29.65
78.5
–0.35
2.65
1.75
5.3
37.4
100
3
15.4
184
5
85
3
–0.08
79.5
+0.46 –1.10
7.4
±0.3
3
39.5
81.5
–0.35
3.15
1.75
5.3
38.3
167
3
25.6
300
5
87
3
–0.08
81.5
+0.54 –1.30
7.4
±0.3
3
40
83.5
–0.35
3.15
1.75
5.3
39.2
164
3
25.5
297
5
90
3
–0.08
84.5
+0.54 –1.30
7.4
±0.3
3
41.92
86.5
–0.35
3.15
1.75
5.3
41.7
157
3
24.8
288
4
95
3
–0.08
89.5
+0.54 –1.30
8
±0.3
3
47.7
91.5
–0.35
3.15
1.75
5.3
42.7
152
3.5
21
285
4
100
3
–0.08
94.5
+0.54 –1.30
8
±0.3
3
49.92
96.5
–0.35
3.15
1.75
5.3
45.8
144
3.5
20.5
276
4
