Internal Reverse Circlips-M1308 JV

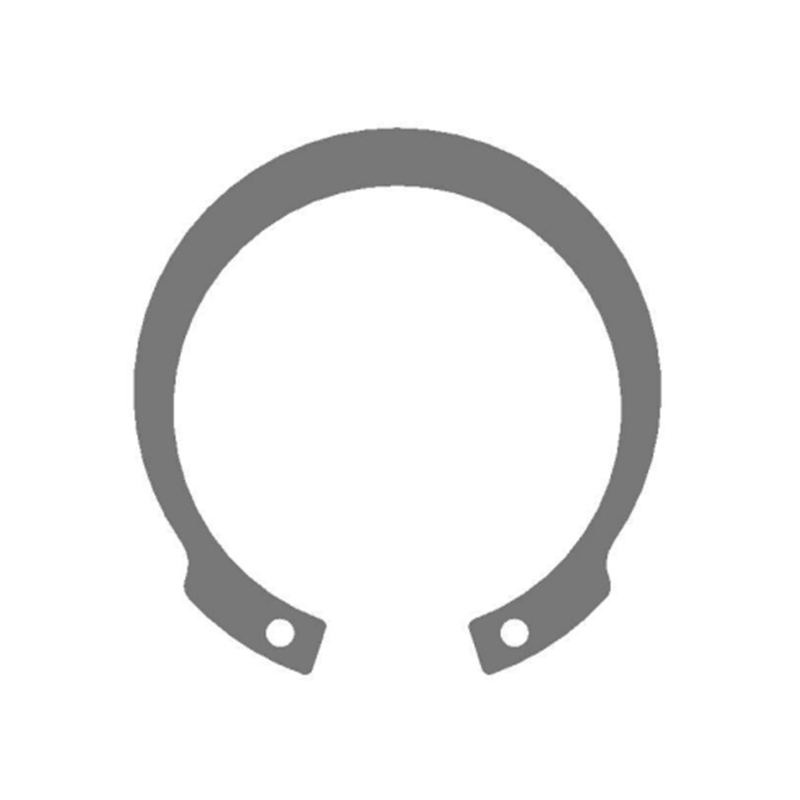

The internal reverse circlips for the hole is a kind of elastic element used for connecting and fixing parts. Its function is to form a certain preload force on the connecting parts to ensure the reliability and sealing of the connection. When installed, its elastic deformation is in the opposite direction to that of the ordinary elastic circlips for the hole.

Material: conventional carbon steel and stainless steel (65Mn, C67S, 2Cr13, 304, 1.4122, etc.).

Surface treatment: all kinds of conventional standard treatment, such as phosphating, Dacromet, Jumet, zinc plating, zinc nickel plating, electrophoresis, and so on.

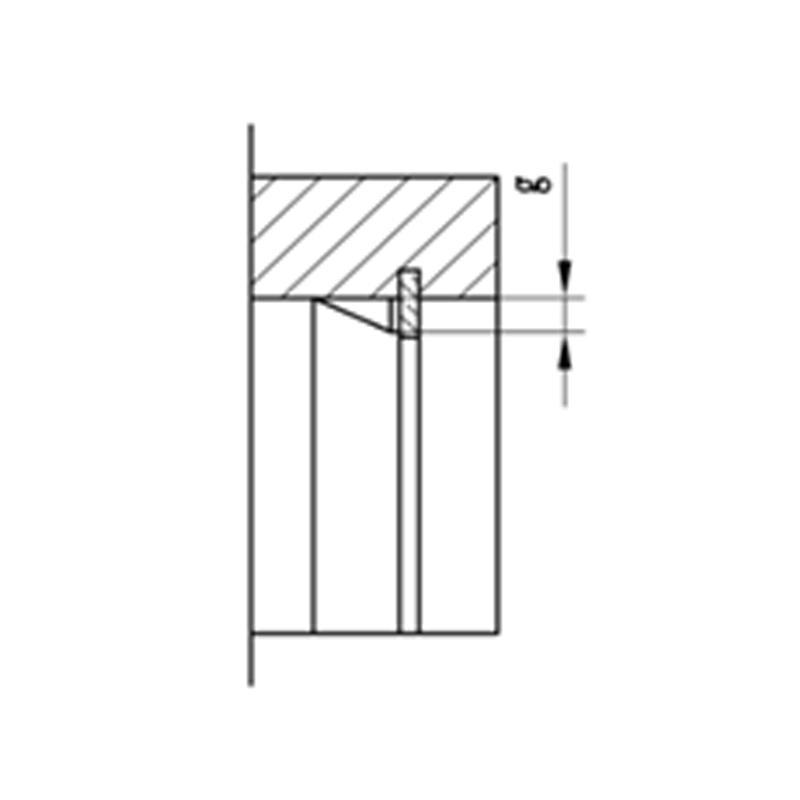

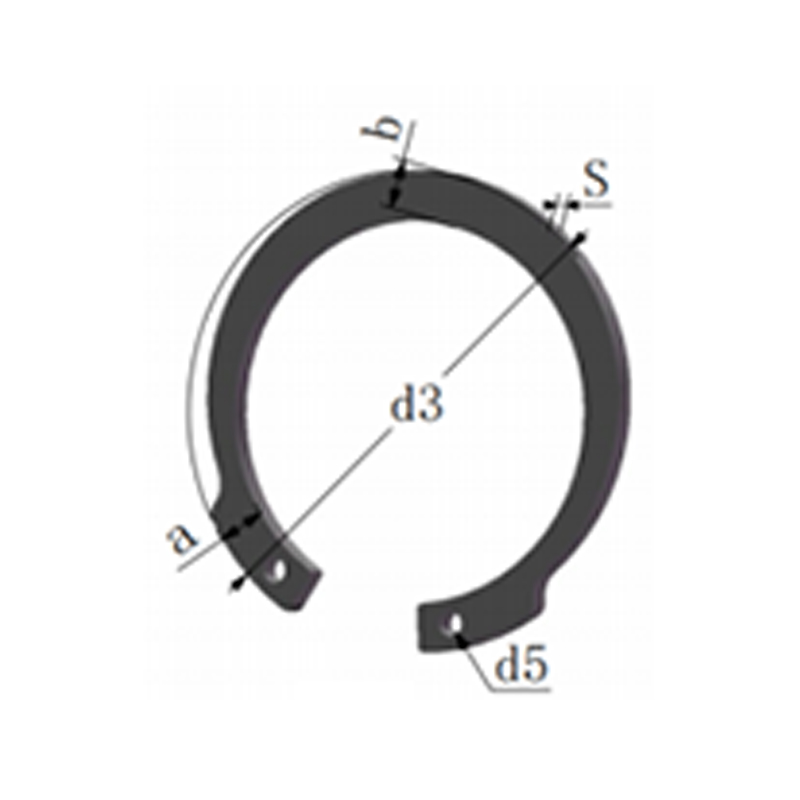

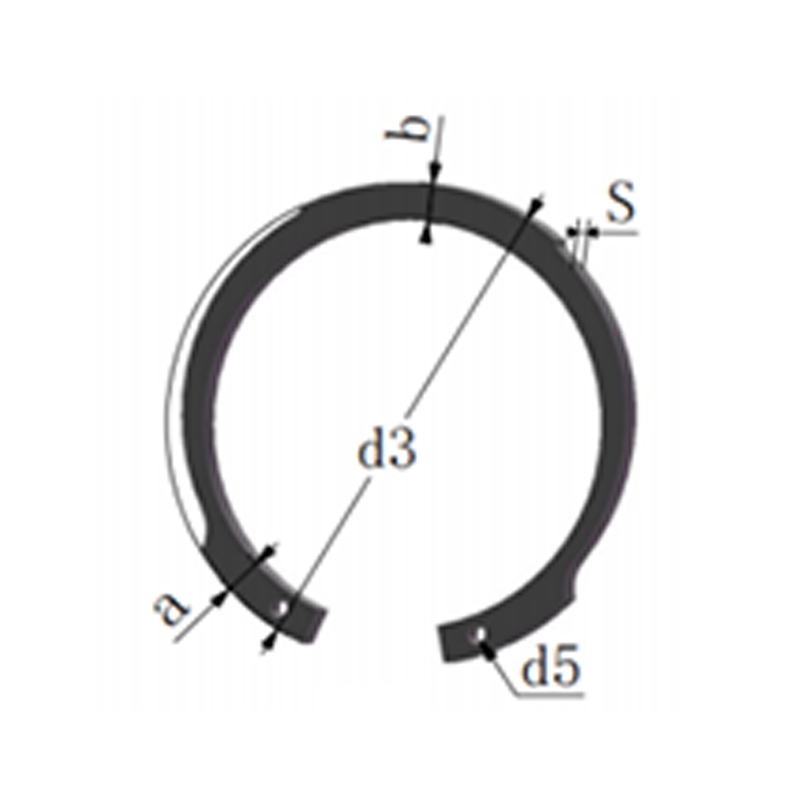

d1: specification/nominal size; S: thickness; d3: outer diameter; b: shoulder width; d5: small hole; Wt: weight; FN: groove bearing capacity; FR: retaining ring bearing capacity (right angle); g: chamfer size; FRg: retaining ring bearing capacity (chamfer);

Internal Reverse Circlips-M1308 JV

d1 S Tol d3 Tol b Tol d5 Min Wt(g) d2 Tol m Min t n FN(KN) FR(KN) g FRg(KN) K N·mm
10
0.6
–0.05
10.9
+0.42 –0.13
1.5
±0.1
0.9
0.15
10.5
+0.11
0.7
0.25
0.7
0.52
1.7
0.5
1
5.7
12
0.6
–0.05
13.1
+0.42 –0.13
1.8
±0.1
1
0.25
12.6
+0.11
0.7
0.3
0.9
0.75
1.8
0.8
1
5.5
15
0.8
–0.05
16.1
+0.42 –0.13
2
±0.1
1
0.41
15.7
+0.11
0.9
0.35
1
1.33
3.3
1
1.9
11
16
1
–0.06
17.3
+0.42 –0.13
2.1
±0.1
1.3
0.53
16.8
+0.11
1.1
0.4
1.2
1.67
5.2
1
3.1
22.7
17
1
–0.06
18.3
+0.42 –0.13
2.1
±0.1
1.3
0.58
17.8
+0.11
1.1
0.4
1.2
1.7
5.8
1
3
21.2
18
1
–0.06
19.5
+0.42 –0.13
2.2
±0.1
1.3
0.62
19
+0.15
1.1
0.5
1.5
1.78
6.3
1
3
20.4
19
1
–0.06
20.5
+0.42 –0.13
2.2
±0.1
1.3
0.66
20
+0.15
1.1
0.5
1.5
2.5
6.6
1
2.8
19.2
20
1
–0.06
21.5
+0.42 –0.13
2.3
±0.1
1.3
0.8
21
+0.15
1.1
0.5
1.5
2.66
7
1
2.9
19
21
1
–0.06
22.5
+0.42 –0.13
2.4
±0.1
1.3
0.81
22
+0.15
1.1
0.5
1.5
2.73
7.4
1
2.8
18.5
22
1
–0.06
23.5
+0.42 –0.13
2.4
±0.1
1.3
0.83
23
+0.15
1.1
0.5
1.5
2.8
7.5
1
2.8
17.8
24
1.2
–0.06
25.9
+0.42 –0.21
2.8
±0.1
1.5
1.3
25.2
+0.21
1.3
0.6
1.8
3.68
14.5
1
4.8
29.9
25
1.2
–0.06
26.9
+0.42 –0.21
2.8
±0.1
1.5
1.4
26.2
+0.21
1.3
0.6
1.8
4
14.8
1
5
30.6
26
1.2
–0.06
27.9
+0.42 –0.21
3
±0.1
1.5
1.5
27.2
+0.21
1.3
0.6
1.8
4.17
15.3
1
5.2
31.4
27
1.2
–0.06
29.1
+0.42 –0.21
3
±0.1
1.5
1.53
28.4
+0.21
1.3
0.7
2.1
5
15
1
5.1
29.9
28
1.2
–0.06
30.1
+0.50 –0.25
3.1
±0.1
1.5
1.8
29.4
+0.21
1.3
0.7
2.1
5.1
15.3
1
5.2
30.4
30
1.2
–0.06
32.1
+0.50 –0.25
3.2
±0.1
1.5
2.03
31.4
+0.25
1.3
0.7
2.1
5.5
14.9
1
5.1
29
32
1.2
–0.06
34.4
+0.50 –0.25
3.3
±0.1
1.5
2.05
33.7
+0.25
1.3
0.85
2.5
7
14.1
1
4.9
27.4
33
1.2
–0.06
35.5
+0.50 –0.25
3.3
±0.1
1.5
2.35
34.7
+0.25
1.3
0.85
2.5
7.3
13.8
1
4.8
26.6
35
1.5
–0.06
37.8
+0.50 –0.25
3.4
±0.1
1.7
3.2
37
+0.25
1.6
1
3
9.2
26.4
1.5
6.3
49.6
36
1.5
–0.06
38.8
+0.50 –0.25
3.6
±0.1
1.7
3.23
38
+0.25
1.6
1
3
9.7
27.5
1.5
6.6
51.5
38
1.5
–0.06
40.8
+0.50 –0.25
3.8
±0.1
1.7
3.68
40
+0.25
1.6
1
3
10.2
28
1.5
6.7
51.2
40
1.75
–0.06
43.5
+0.90 –0.39
4.2
±0.2
2
4.75
42.5
+0.25
1.85
1.25
3.8
13.5
45.5
2
8.4
82.5
42
1.75
–0.06
45.5
+0.90 –0.39
4.2
±0.2
2
5.2
44.5
+0.25
1.85
1.25
3.8
14.1
45.5
2
8.5
82.5
45
1.75
–0.06
48.5
+0.90 –0.39
4.2
±0.2
2
6
47.5
+0.25
1.85
1.25
3.8
15
44
2
8.4
79.5
47
1.75
–0.06
50.5
+1.10 –0.46
4.7
±0.2
2
6.5
49.5
+0.25
1.85
1.25
3.8
15.8
45
2
8.7
81.3
48
1.75
–0.06
51.5
+1.10 –0.46
4.7
±0.2
2
7
50.5
+0.3
1.85
1.25
3.8
16
48
2
9.1
85.8
50
2
–0.07
54.2
+1.10 –0.46
5.2
±0.2
2.5
8.5
53
+0.3
2.15
1.5
4.5
20
69
2
13.4
124
52
2
–0.07
56.2
+1.10 –0.46
5.2
±0.2
2.5
9
55
+0.3
2.15
1.5
4.5
20.8
66.5
2
13.3
121
55
2
–0.07
59.2
+1.10 –0.46
5.2
±0.2
2.5
10
58
+0.3
2.15
1.5
4.5
22.2
66
2
13.3
118
57
2
–0.07
61.2
+1.10 –0.46
5.2
±0.2
2.5
10.25
60
+0.3
2.15
1.5
4.5
23
65
2
13.1
115
58
2
–0.07
62.2
+1.10 –0.46
5.2
±0.2
2.5
10.5
61
+0.3
2.15
1.5
4.5
23.3
64
2
12.9
113
60
2
–0.07
64.2
+1.10 –0.46
5.2
±0.2
2.5
11.25
63
+0.3
2.15
1.5
4.5
24.2
62
2
12.7
111
62
2
–0.07
66.2
+1.10 –0.46
5.2
±0.2
2.5
11.75
65
+0.3
2.15
1.5
4.5
25
60
2
12.3
107
65
2.5
–0.07
69.2
+1.10 –0.46
5.7
±0.2
2.5
16.25
68
+0.3
2.65
1.5
4.5
25.8
122
2.5
20.6
218
67
2.5
–0.07
71.5
+1.10 –0.46
5.7
±0.3
2.5
17.3
70
+0.3
2.65
1.5
4.5
26.8
122
2.5
20.8
218
68
2.5
–0.07
72.5
+1.10 –0.46
5.7
±0.3
2.5
17.75
71
+0.3
2.65
1.5
4.5
27.2
123
2.5
21
220
72
2.5
–0.07
76.5
+1.10 –0.46
6
±0.3
2.5
19.6
75
+0.3
2.65
1.5
4.5
28.8
119
2.5
20.8
214
80
2.5
–0.07
85.5
+1.30 –0.54
6
±0.3
2.5
22.9
83.5
+0.35
2.65
1.75
5.3
37.4
110
2.5
19.6
196
85
3
–0.08
90.5
+1.30 –0.54
6.6
±0.3
3
30
88.5
+0.35
3.15
1.75
5.3
39.7
176
3
27.2
318
90
3
–0.08
95.5
+1.30 –0.54
6.6
±0.3
3
33
93.5
+0.35
3.15
1.75
5.3
42
169
3
26.6
309
95
3
–0.08
100.5
+1.30 –0.54
7.4
±0.3
3
37.5
98.5
+0.35
3.15
1.75
5.3
43.5
168
3
27
315
100
3
–0.08
105.5
+1.30 –0.54
7.4
±0.3
3
41.9
103.5
+0.35
3.15
1.75
5.3
46.7
165
3
26.8
312
