Heavy-duty Anti-shift External Snap Ring-M2400 SW

A heavy-duty anti-shift external snap ring is a device used to prevent the bearing from operating in the bearing housing run, its main role is to fix the bearing, rather than braking, which is now used in hard material direct molding, the size of the consistency is better.

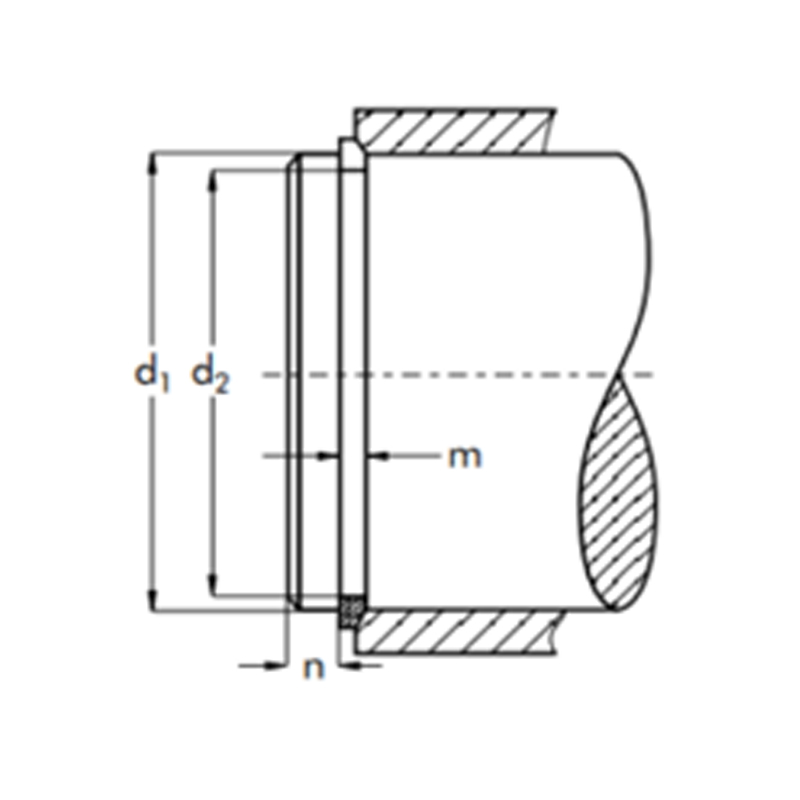

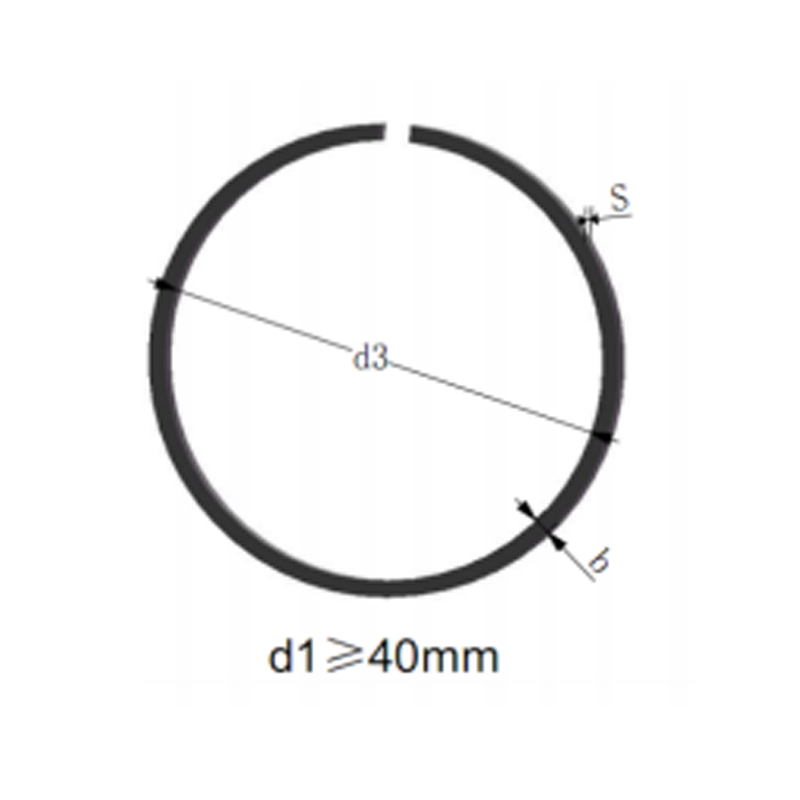

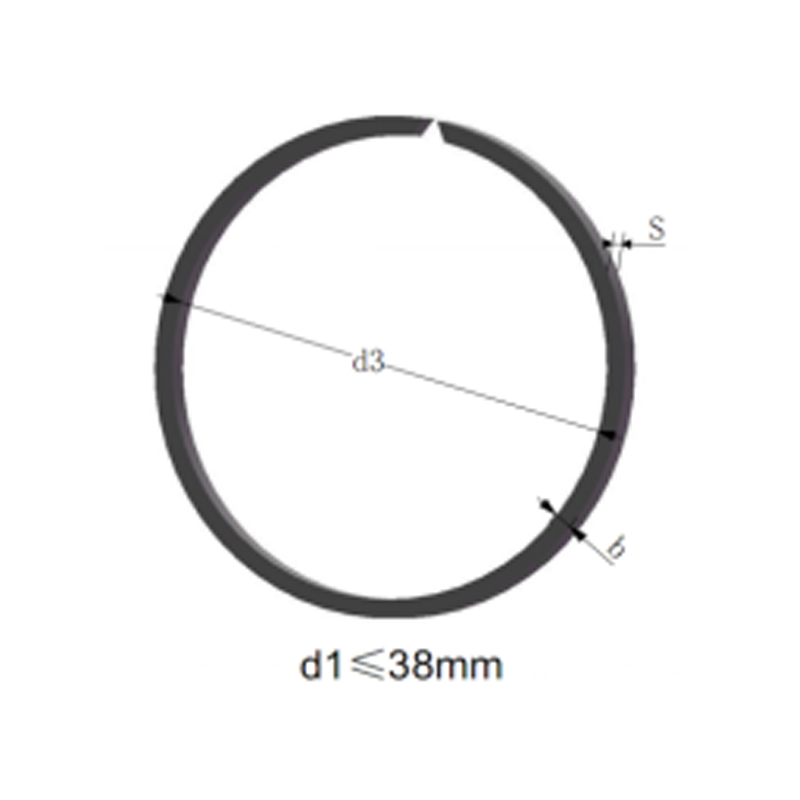

d1: specification/nominal size; S: thickness; d3: inner diameter; b: shoulder width; Wt: weight; FN: groove bearing capacity; FR: retaining ring bearing capacity; nabl: limiting speed;

Heavy-duty Anti-shift External Snap Ring-M2400 SW

d1 S(-0.1) b(-0.1) d3 Max Wt(g) d2 Tol m Min FN(KN) FR(KN) n ablx1000
4
0.5
0.8
3.7
0.02
3.8
–0.09
0.6
0.2
1.25
275
5
0.5
1
4.7
0.05
4.8
–0.09
0.6
0.26
1.3
192
6
0.7
1.1
5.6
0.09
5.7
–0.09
0.8
0.46
3.5
141
7
0.7
1.2
6.5
0.12
6.7
–0.09
0.8
0.54
3.5
134
8
1
1.3
7.4
0.2
7.6
–0.09
1.1
0.82
6.5
108
9
1
1.3
8.4
0.24
8.6
–0.09
1.1
0.92
6.5
80
10
1
1.3
9.4
0.25
9.6
–0.09
1.1
1.03
6.5
68
11
1
1.3
10.2
0.29
10.5
–0.11
1.1
1.4
9.8
64
12
1
1.3
11.2
0.3
11.5
–0.11
1.1
1.53
9.3
53
13
1
1.3
12.2
0.34
12.5
–0.11
1.1
1.7
8.9
43
14
1.2
1.5
13.1
0.5
13.5
–0.11
1.3
1.8
17
45
15
1.2
1.75
14
0.66
14.4
–0.11
1.3
2.3
18.7
44
16
1.2
1.75
15
0.69
15.4
–0.11
1.3
2.47
17.7
38
17
1.2
1.75
16
0.72
16.4
–0.11
1.3
2.63
17
34
18
1.2
1.75
17
0.75
17.4
–0.11
1.3
2.78
16.2
30
19
1.2
1.75
17.9
0.8
18.4
–0.13
1.3
2.94
15.6
29
20
1.2
1.75
18.7
0.84
19.2
–0.13
1.3
4.1
15
26
21
1.2
1.75
19.7
0.87
20.2
–0.13
1.3
4.3
14.6
23
22
1.2
1.75
20.7
0.91
21.2
–0.13
1.3
4.5
14
21
24
1.2
1.75
22.5
0.99
23
–0.13
1.3
6.15
13.3
18
25
1.2
1.75
23.5
1
24
–0.13
1.3
6.4
12.8
16
26
1.2
1.75
24.5
1.1
25
–0.13
1.3
6.65
12.5
15
27
1.5
2.3
25.5
2
26
–0.13
1.6
6.95
30
16
28
1.5
2.3
26.5
2.11
27
–0.13
1.6
7.2
29.3
15
29
1.5
2.3
27.5
2.2
28
–0.13
1.6
7.45
28.2
14
30
1.5
2.3
28.5
2.33
29
–0.13
1.6
7.7
27.5
13
32
1.5
2.3
30.2
2.41
30.8
–0.16
1.6
9.9
26.5
13
35
1.5
2.3
33.2
2.51
33.8
–0.16
1.6
10.8
24.4
11
37
1.5
2.3
35.2
2.72
35.8
–0.16
1.6
11.3
23.5
9
38
1.5
2.3
36.2
2.83
36.8
–0.16
1.6
11.6
22.7
9
40
1.5
2.3
37.8
2.91
38.5
–0.16
1.6
15.5
22
8
42
1.5
2.3
39.8
3.1
40.5
–0.16
1.6
16.2
21.4
7
43
1.5
2.3
40.8
3.25
41.5
–0.16
1.6
16.5
21.1
7
45
1.5
2.3
42.8
3.39
43.5
–0.16
1.6
17.3
20.6
6
47
1.5
2.3
44.8
3.48
45.5
–0.16
1.6
18.2
19.2
6
48
1.5
2.3
45.8
3.6
46.5
–0.16
1.6
18.7
18.6
5
50
1.5
2.3
47.8
3.73
48.5
–0.16
1.6
19.5
18.1
5
52
1.5
2.3
49.8
3.92
50.5
–0.19
1.6
20.2
17.7
4
55
1.5
2.3
52.6
4.11
53.5
–0.19
1.6
21
16.5
4
58
1.5
2.3
55.6
4.4
56.5
–0.19
1.6
22.5
15.7
4
60
1.5
2.3
57.6
4.55
58.5
–0.19
1.6
23.2
15.4
4
63
1.5
2.3
60.6
4.58
61.5
–0.19
1.6
24.4
14.7
3
65
1.5
2.3
62.6
4.64
63.5
–0.19
1.6
25.2
14.2
3
68
2
2.8
65.4
8.59
66.2
–0.19
2.2
31.7
39.6
3
70
2
2.8
67.4
8.71
68.2
–0.19
2.2
32.5
38.4
3
72
2
2.8
69.4
8.8
70.2
–0.19
2.2
33.7
37.6
3
73
2
2.8
70.4
8.9
71.2
–0.19
2.2
34
37
3
75
2
2.8
72.4
9.32
73.2
–0.19
2.2
35
36.2
2
80
2
2.8
77.4
9.67
78.2
–0.19
2.2
37.4
34.2
2
85
2.5
3.4
82
16
83
–0.22
2.7
44
72
2
90
2.5
3.4
87
16
88
–0.22
2.7
46.5
66.3
2
95
2.5
3.4
92
18.2
93
–0.22
2.7
49.2
61.8
2
100
2.5
3.4
97
18.9
98
–0.22
2.7
51.9
57.3
2
105
2.5
3.4
101.7
20.7
102.7
–0.22
2.7
65
54
2
110
2.5
3.4
106.6
20.9
107.7
–0.22
2.7
69
50.4
1
115
2.5
3.4
111.6
22.1
112.7
–0.22
2.7
71
47.2
1
120
2.5
3.4
116.5
24.1
117.7
–0.22
2.7
75
44.8
1
125
2.5
3.4
121.5
25.1
122.7
–0.25
2.7
78.5
41.8
1
130
2.5
3.4
126.4
26.6
127.7
–0.25
2.7
84
39.6
1
135
2.5
4
131.1
30.2
132.4
–0.25
2.7
87
44
1
140
2.5
4
136
31.1
137.4
–0.25
2.7
91.5
41.6
1
145
2.5
4
141
32.6
142.4
–0.25
2.7
95
39.6
1
150
2.5
4
145.9
32.8
147.4
–0.25
2.7
98
37.5
1
155
2.5
4
150.9
34.7
154.4
–0.25
2.7
100
36.3
1
160
2.5
4
155.8
36.6
157.4
–0.25
2.7
103
35.6
1
165
2.5
4
160.8
37.4
162.4
–0.25
2.7
106
34.2
0.5
170
2.5
4
165.7
38.5
167.4
–0.25
2.7
108
33.5
0.5
175
2.5
4
170.7
39.4
172.4
–0.25
2.7
117
32.2
0.4
180
3
5
175.2
61.2
177
–0.25
3.2
140
67.5
1
185
3
5
180.2
63.9
182
–0.29
3.2
144
66.2
1
190
3
5
185.1
65.9
187
–0.29
3.2
148
64
1
195
3
5
190.1
67.5
192
–0.29
3.2
152
62.6
1
200
3
5
196
68.4
197
–0.29
3.2
156
61.4
0.5
210
3
5
204.9
72
207
–0.29
3.2
164
58
0.5
220
3
5
214.8
76.3
217
–0.29
3.2
171
55.5
0.4
230
3
5
224.7
79.8
227
–0.29
3.2
180
53
0.3
240
3
5
234.6
81.7
237
–0.29
3.2
187
51
0.3
250
3
5
244.5
86.5
247
–0.32
3.2
195
49
0.3
260
4
7.5
252.4
179
255
–0.32
4.2
338
168
0.4
265
4
7.5
257.4
185.2
260
–0.32
4.2
344
165
0.4
270
4
7.5
262.3
197.7
265
–0.32
4.2
350
162
0.4
280
4
7.5
272.2
198.7
275
–0.32
4.2
362
155
0.4
285
4
7.5
277.2
199.5
280
–0.32
4.2
370
151
0.3
290
4
7.5
282.1
205.3
285
–0.32
4.2
377
148
0.3
300
4
7.5
292.1
214.2
295
–0.32
4.2
390
145
0.3
305
4
7.5
297.1
219.4
300
–0.32
4.2
396
142
0.3
310
4
7.5
302
223.1
305
–0.32
4.2
402
139
0.3
320
4
7.5
311.9
225.3
315
–0.32
4.2
416
137
0.3
330
4
7.5
321.8
228.6
325
–0.36
4.2
428
132
0.2
340
4
7.5
331.7
239.3
335
–0.36
4.2
442
129
0.2
350
4
7.5
341.6
251.2
345
–0.36
4.2
455
123
0.2
360
4
7.5
351.5
253.1
355
–0.36
4.2
468
120
0.2
370
4
7.5
361.5
259.2
365
–0.36
4.2
482
117
0.2
380
4
7.5
371.4
265.8
375
–0.36
4.2
494
115
0.2
390
4
7.5
381.3
273.9
385
–0.36
4.2
507
112
0.2
400
4
7.5
391.2
281.1
395
–0.36
4.2
521
109
0.1
420
4.5
12
410
531
415
–0.36
4.8
547
133
0.3
460
4.5
12
449.5
582
455
–0.36
4.8
600
126
0.2
